Description

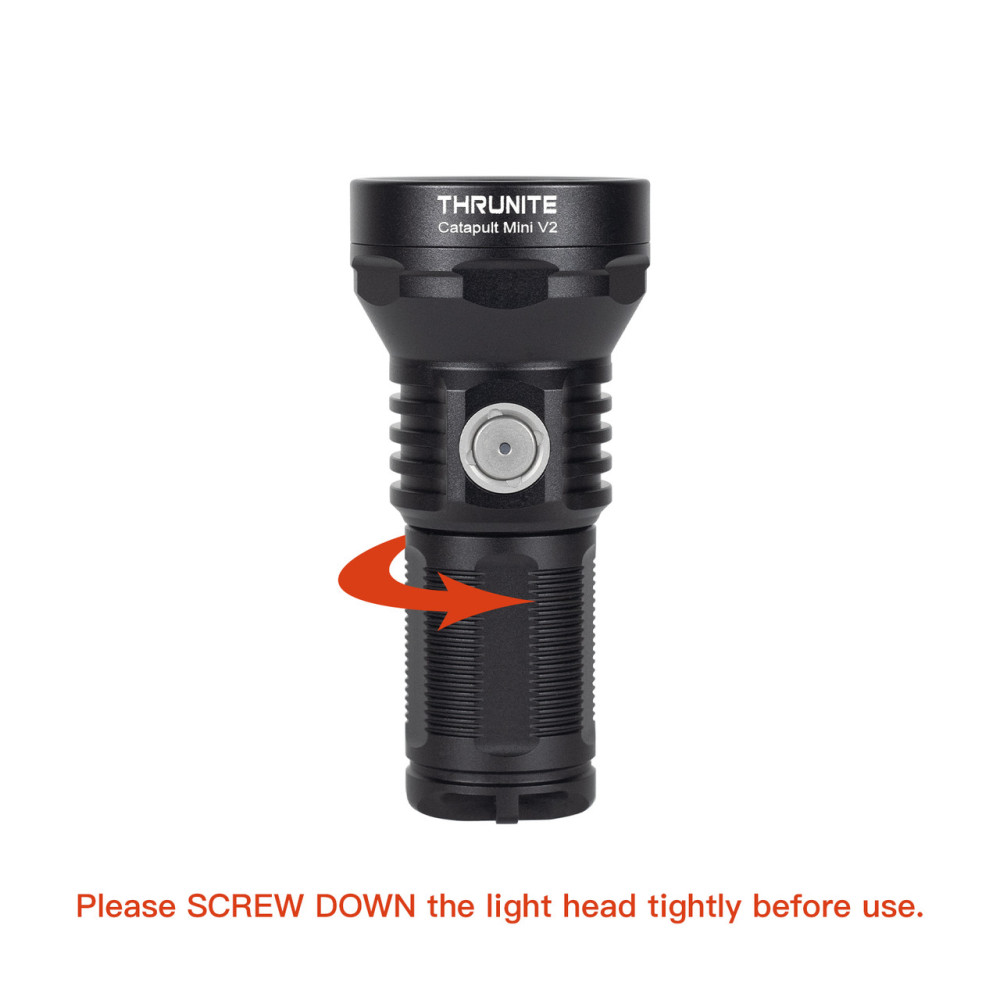

Please charge the flashlight before use, and pls screw down the light head and tail cap first before charging.

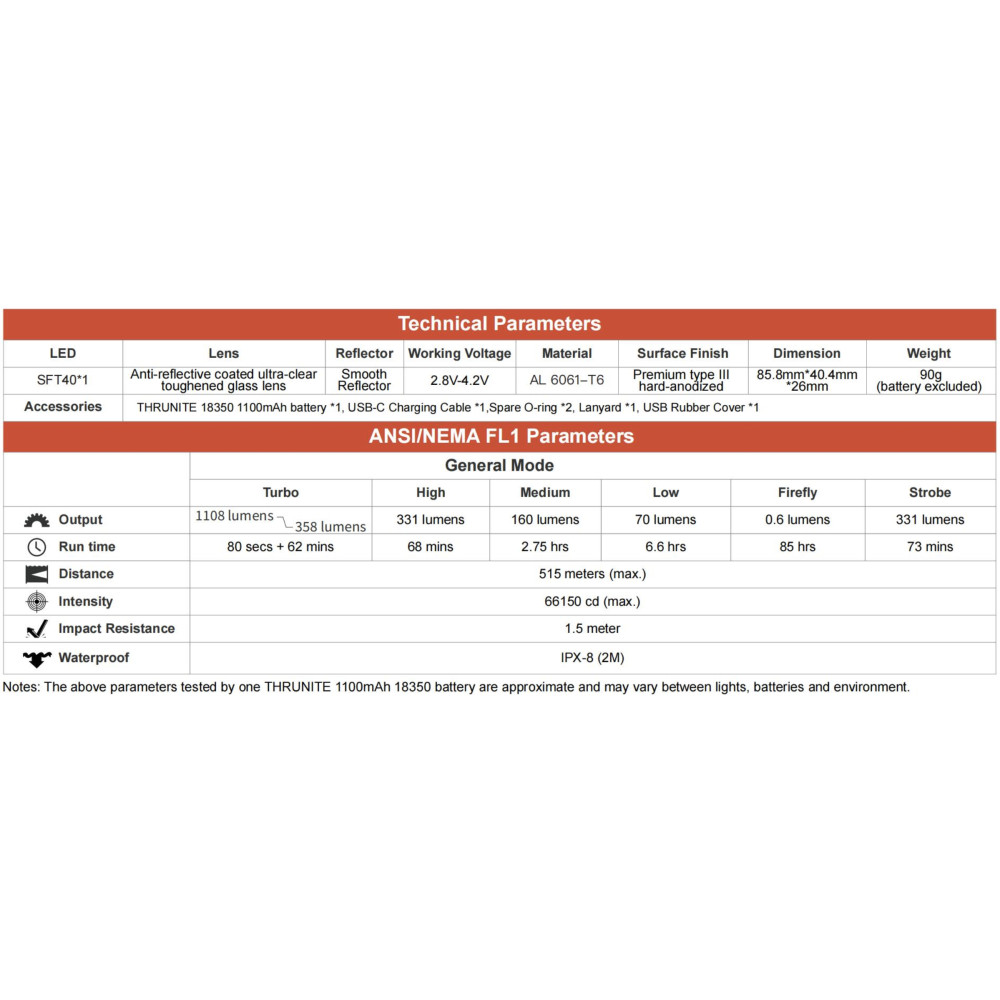

Specifications:

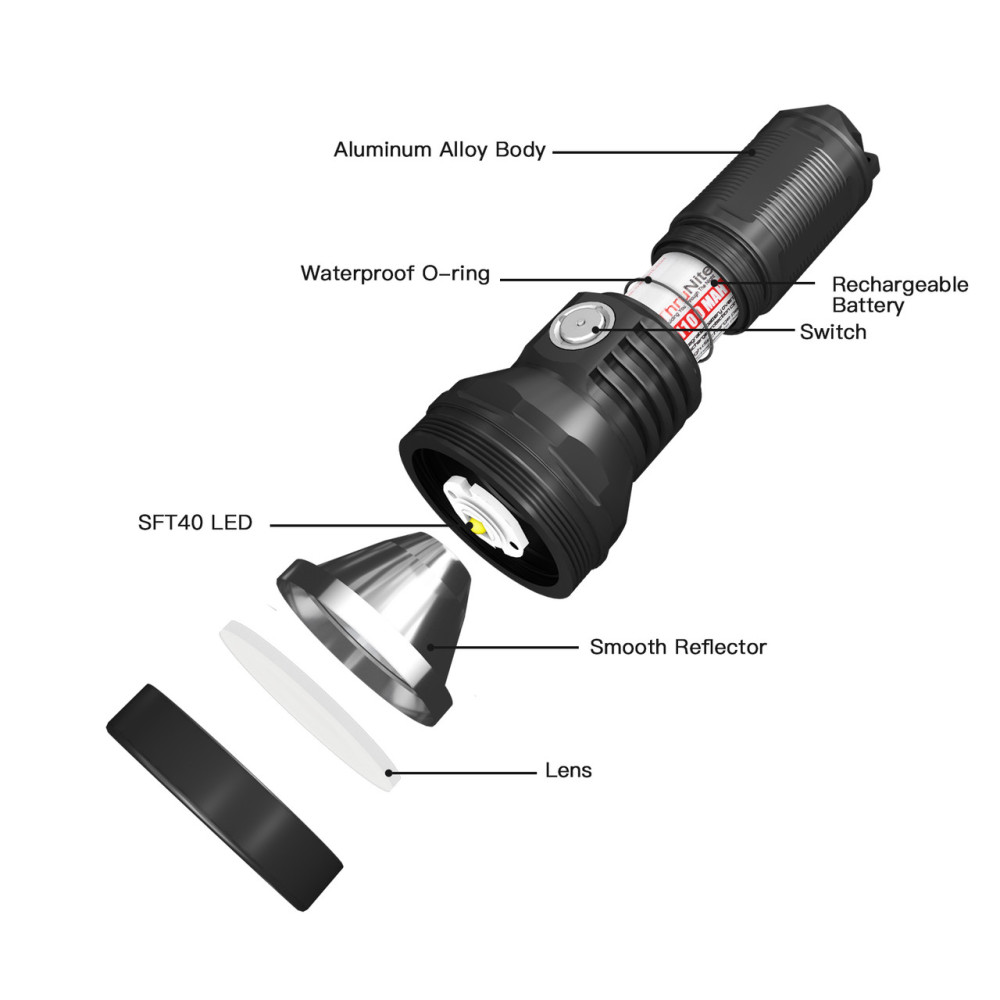

LED: Luminus SFT40 LED
Powered by: 1x 18350 battery (1x ThruNite 18350 1100mAh battery included)
Reflector: Smooth reflector
Max Beam Distance: 515m
Peak Beam Intensity: 66150cd
Output / Runtime:
- Firefly: 0.6 lumen (85 hours)
- Low: 70 lumen (6.6 hours)
- Medium: 160 lumen (2.75hours)
- High: 331 lumen (68 minutes)
- Turbo: 1108~358 lumen (80 secs + 62 mins)
- Strobe: 331 lumen (73 minutes)
Impact Resistance: 1.5 Metres
Waterproof: IPX-8 Standard (2M)
Dimensions:
- Length – 85.8 mm
- Head Diameter – 40.4 mm
- Tube Diameter – 26 mm
Weight: 117g (Including battery)

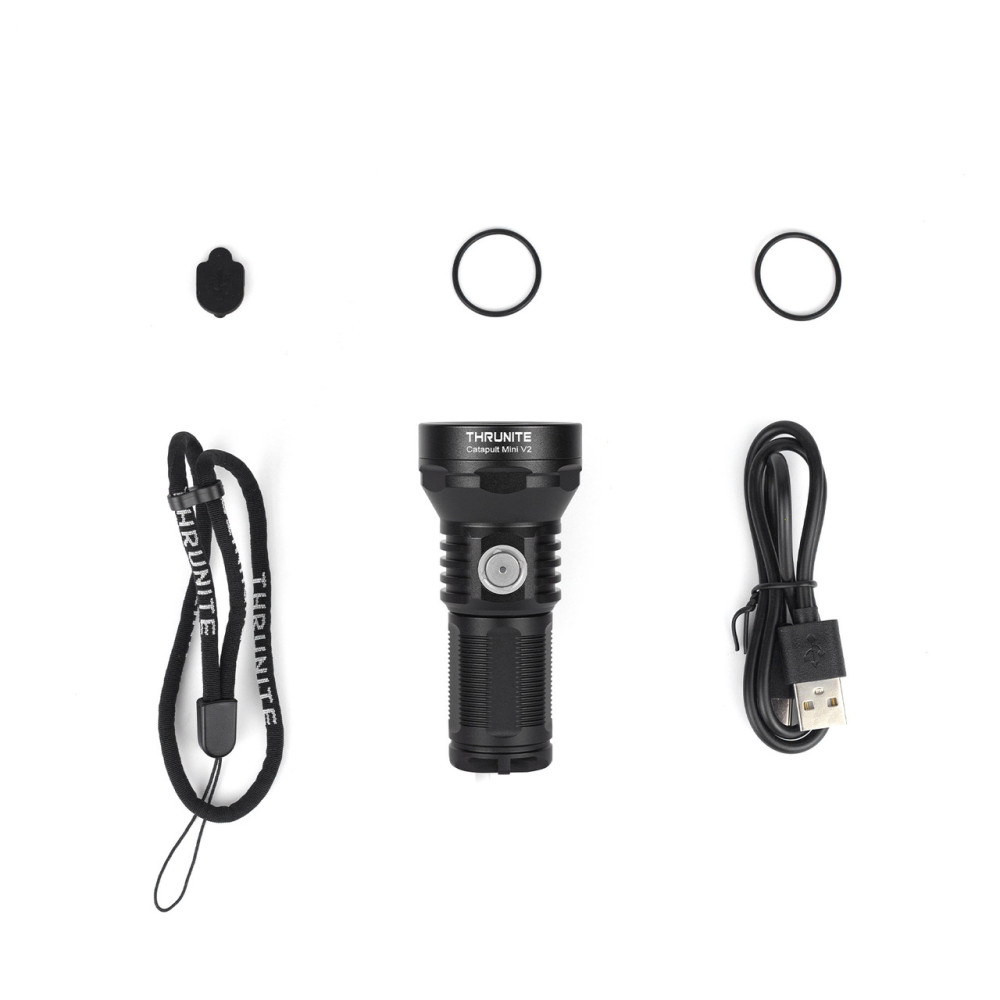

Package Includes:
- 1 x ThruNite Catapult Mini V2
- 1 x ThruNite 18350 1100mAh battery

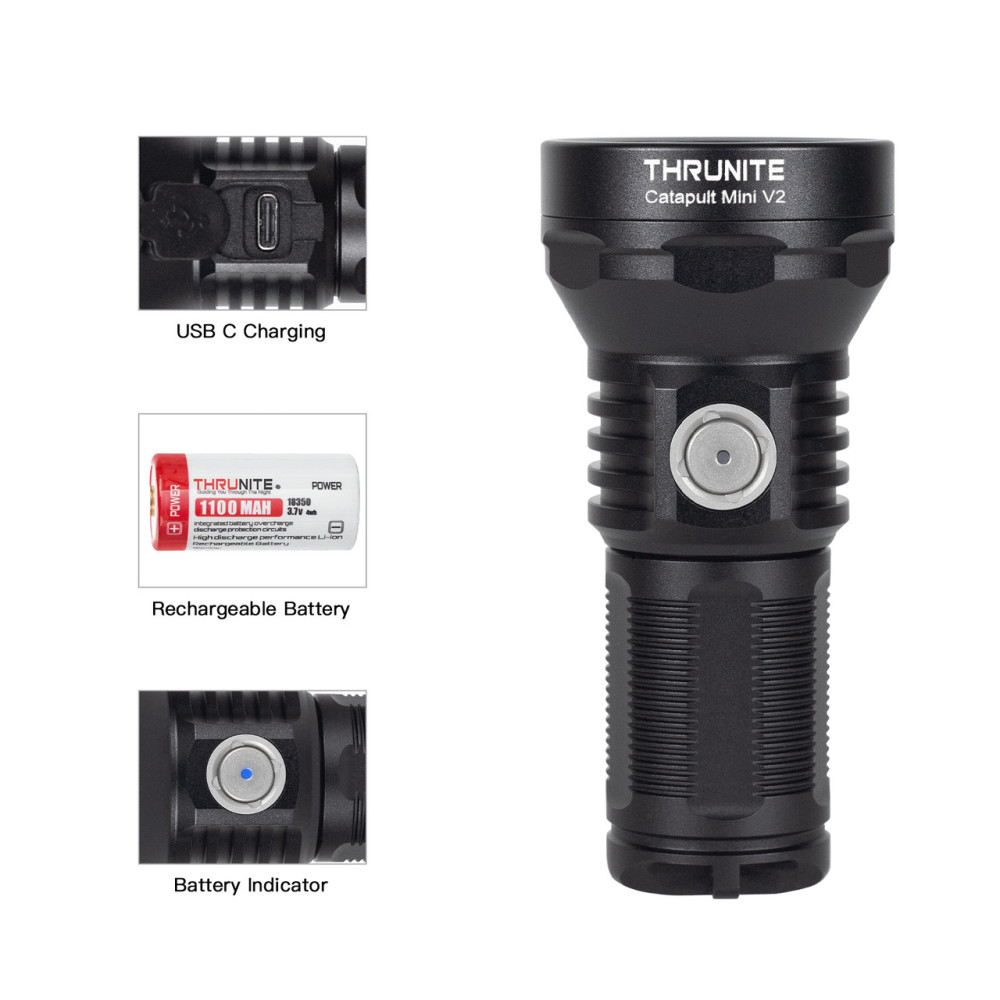

- 1 x USB-C charging cord
- 1 x Spare USB port cover
- 1 x Lanyard
- 2 x Spare O-rings
Operation
To turn on/off the light:

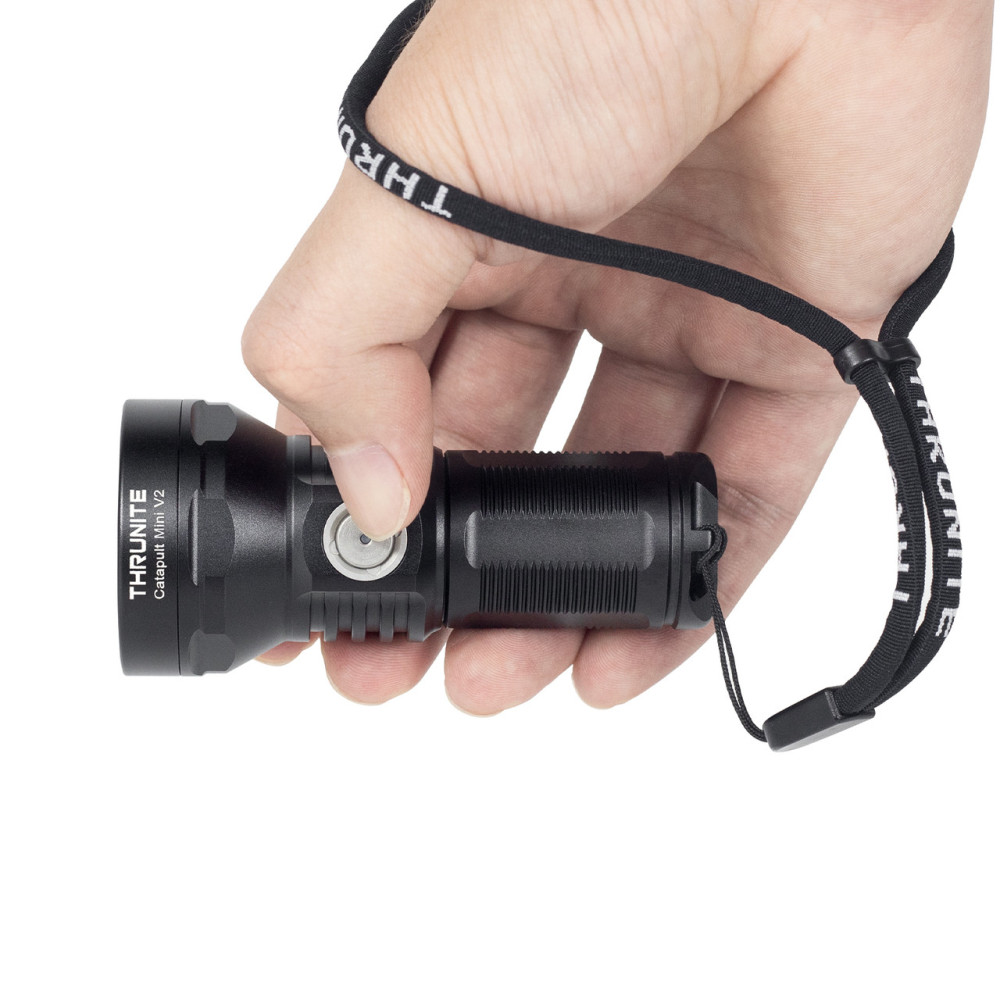

- After the light is unlocked, press the side switch to turn on /off
To change modes:
- Six modes in total: firefly, low, medium, high, turbo, and strobe.
- When the light is on, long press the side switch to cycle through low, medium and high.
- Shortcut to firefly: When the light is off, long press the side switch to get firefly mode.
- Double click to turn to turbo from any mode. Another double click to get back.
- Triple click to get strobe. At strobe mode, press and hold the side switch to cycle through special modes (beacon-SOS-Strobe)
- Memory function: The light will turn on in the last mode accessed, except for special modes (firefly, turbo, Beacon-SOS-strobe)
Breathing LED indicator:
- Press the side button for 3 seconds to turn on the breathing LED indicator. Another click to turn off.
Lock out function:
- When the light is off, press the switch four times quickly to lock the light. It will flash three times while locked. Click the switch four times quickly to unlock.
Battery replacement:
- Take off the tail cap, insert the battery with positive polarity toward the LED assembly(head of the light)
- Install the tail cap and tighten all the way to operate the light.
