Description
- Durable Construction & Engineering – The electronics of the light are designed with high efficient constant current driver that enable the light to have the constant brightness beam without flashing as well as integrated temperature sensor with temperature regulation to prevent overheating. The employed thermoelectric separation technology ensures heat generated from the LED and circuit is transferred to the exterior rapidly through an accommodated copper substrate. driving the Osram KW CSLNM1.TG LED to its fullest potential while extending its life span.

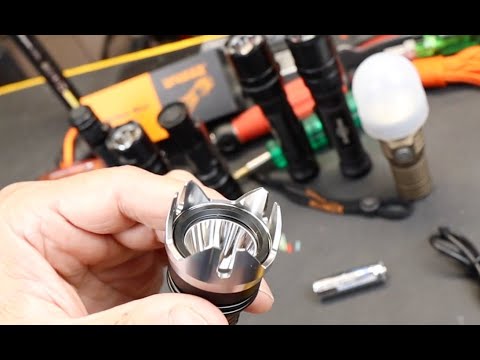

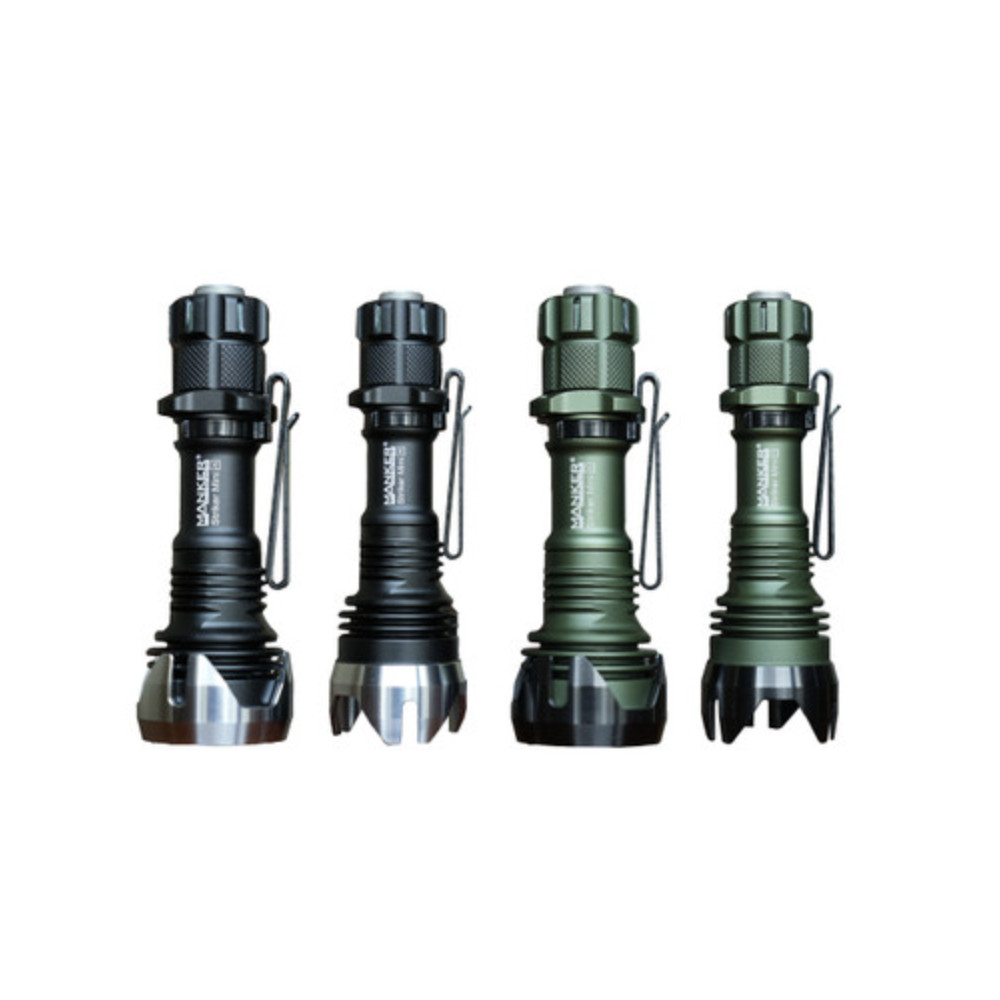

- Unique Two-way Strike Bezel – Made by 304 stainless steel material with anti-fingerprint (natural colour) or PVD black coating, trapezoidal thread design for easy installation and removal through rotating bezel. Two-way means Striker Mini strike bezel can be installed in two directions: with jagged edge head up-ward the light is useful for self-defence, night combat and glass breaking; If strike bezel is removed and reverse-installed it provides a less aggressive and subtle look.

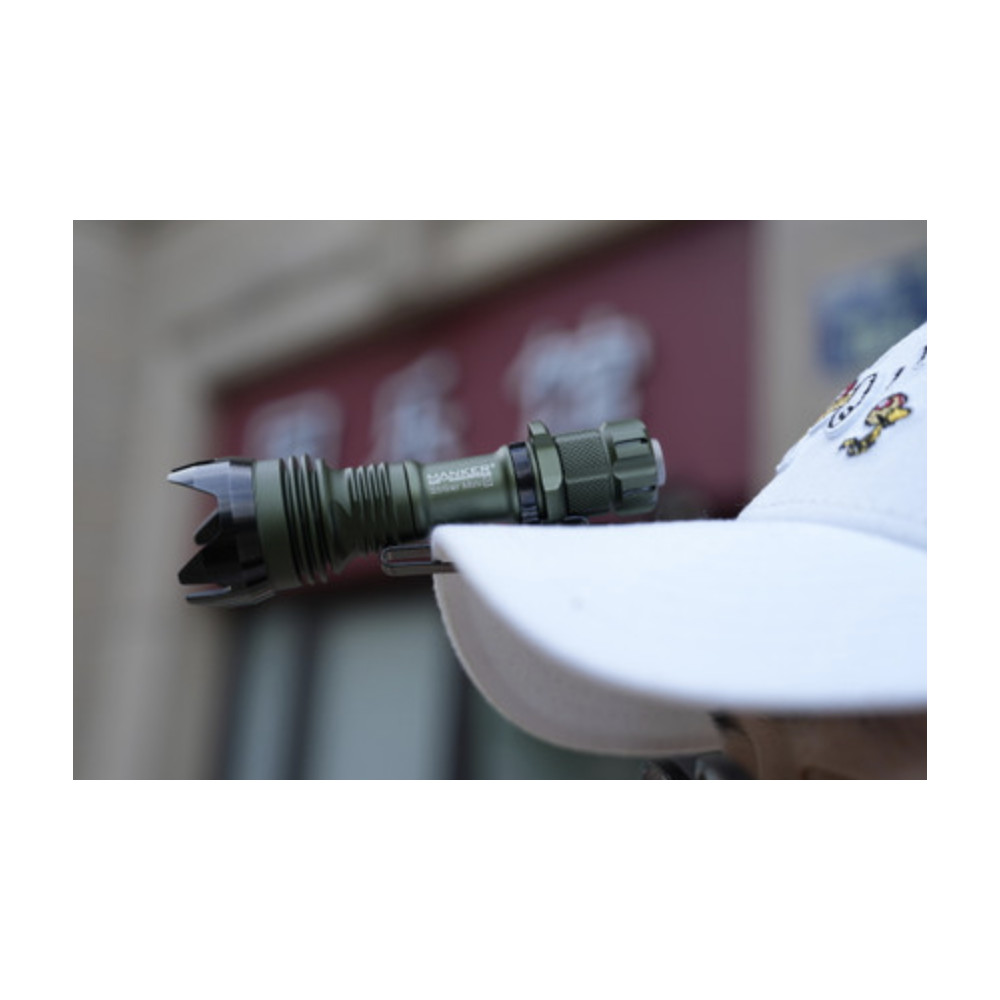

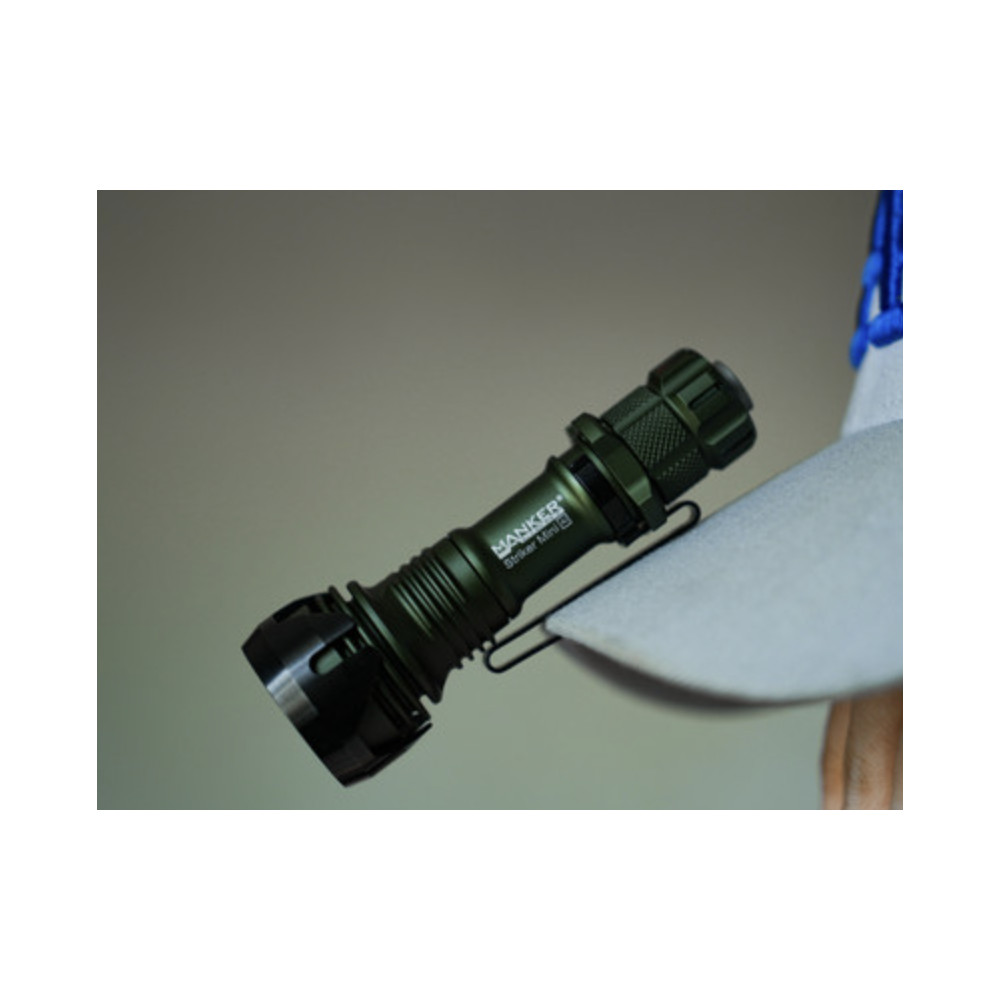

- Well-made Two-way Pocket Clip – Made by 304 stainless steel material with black plating, the two-way clip allows attaching of the light in up or down-ward directions, making it easy to be attached to the peak of a cap for hands-free use during activities, attach to a backpack, tool bag, front pocket etc for easy carry.
- Full Metal Tactical Ring – Made by aerospace aluminium alloy with type III hard anodising finish, anti-rolling design, rugged, durable and built for tough situations. There are also two integrated lanyard holes on the tactical ring for attaching the lanyard (included).
- Additional EDC Element (Tritium Glow Bar Slots Design) – Users can install 1.5 mm tritium or glow sticks to customise the flashlight. The total quantity is 7 (6 slots located at the tail housing, 1 slot located at the button cap) which means it has different possibilities of tritium vial combinations.
- Versatile Usage – Personal EDC (everyday carry gear) / PSK / Home use / Emergency / Outdoor Activities (Camping, Hiking, Cycling) / Inspection / Daily Tasks / Self Defence / Night Searching / Tactical / Law Enforcement.
Specifications
• Light source: 1x Osram KW CSLNM1.TG LED
• Light Modes: High / Low + Hidden Strobe
• Output: 635 lm / 50 lm / 635 lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 3 min~1 hrs 15 min~40 min / 6 hrs 30 min / – (powered by 14500 USB-C Li-ion Battery)
• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 430 meters (1411 feet)
• Working Voltage: 0.9 V – 4.2 V
• Driver: High Efficiency Constant Current Circuit (Both 14500 and AA)
• Body Material: Aerospace Aluminium Alloy with Type III Hard Anodised
• Strike Bezel Material: 304 Stainless Steel with Anti-fingerprint (Natual colour) or PVD Black Coating
• Clip Material: 304 Stainless Steel with Black Plated
• Button Material: 304 Stainless Steel with Sandblasted
• Contact Spring Retainer Material: Phosphore Bronze / Gold Plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: SMO Aluminium Reflector with Vacuum Plated
• Switch: Tactical Forward-click Switch (Mechanical Switch)
• Tritium: 6 slots in Tail, 1 in Button Cap. (fit for 6*1.5 mm)

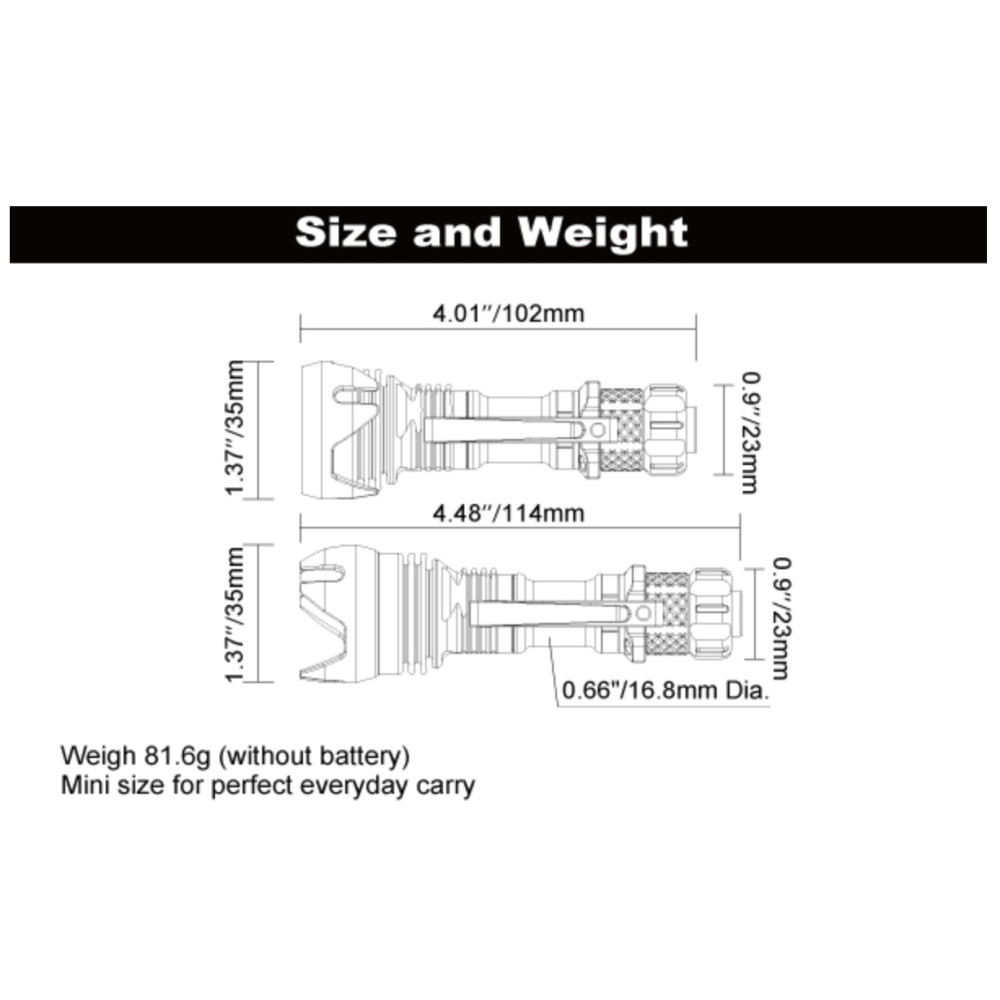

• Size: 102 mm (Length) x 35 mm (Head diameter) x 16.8 mm (Body diameter) x 23 mm (Tail diameter)
• Weight: 81.6 gram or 2.88 oz (Without battery); 103.3 gram or 3.64 oz (with 14500 battery)
• Impact Resistance: 1.5 metres

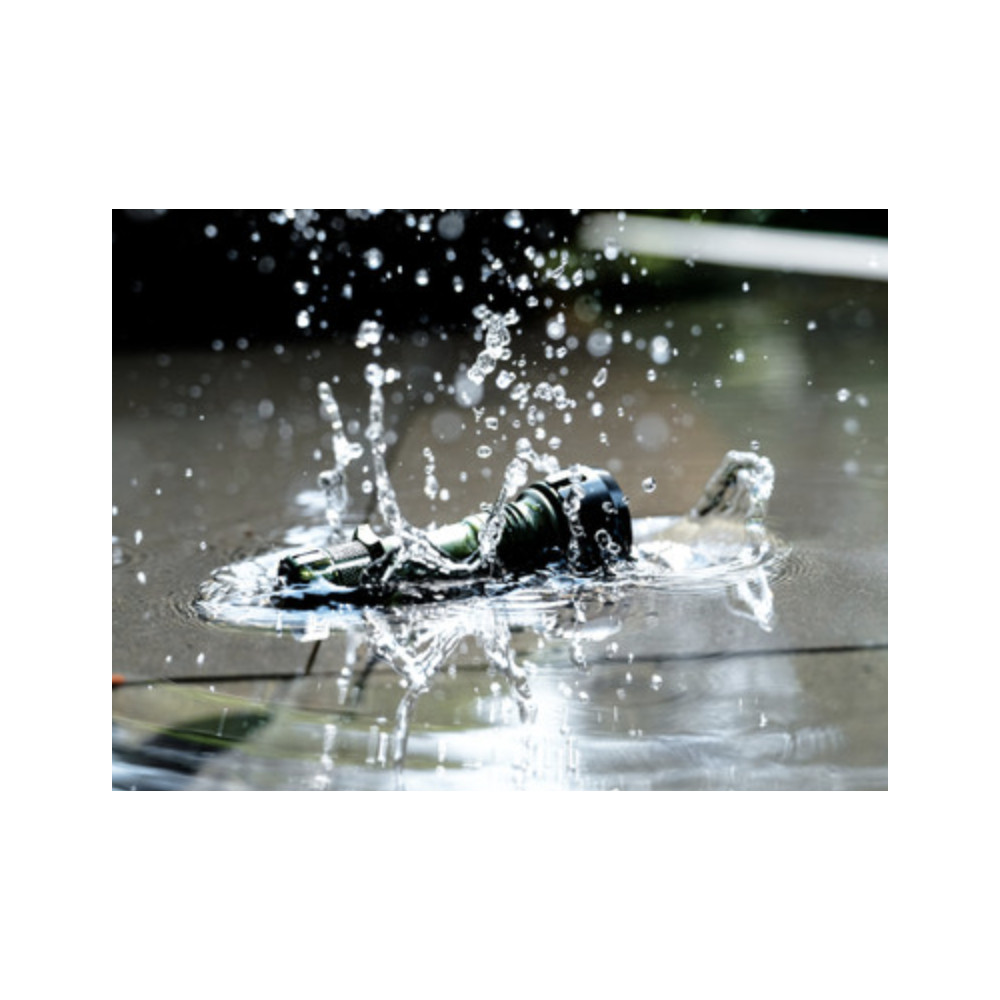

• Waterproof: IP68, 2 metres underwater for 30 minutes
Operating Instructions
Light modes: High / Low + hidden Strobe
Tactical forward click switch (mechanical switch): Slightly tap to turn the light, release it the light will go out. Full press till a click sound is heard to constantly turn ON /OFF the light.
– Half-press to cycle through the modes (High/Low), full press till a click sound is heard to constantly turn on High (or Low).
– Quickly double half-press to activate strobe, full press till a click sound is heard to constantly turn on Strobe.
– Full press till a click sound is head to turn on High mode, and full press it again the light will turn off; keep full press it to constantly on Low, and full press it again the light will turn off;
– The light will automatically reset to High mode when OFF for longer than 2 seconds.
Battery Charging Indicator

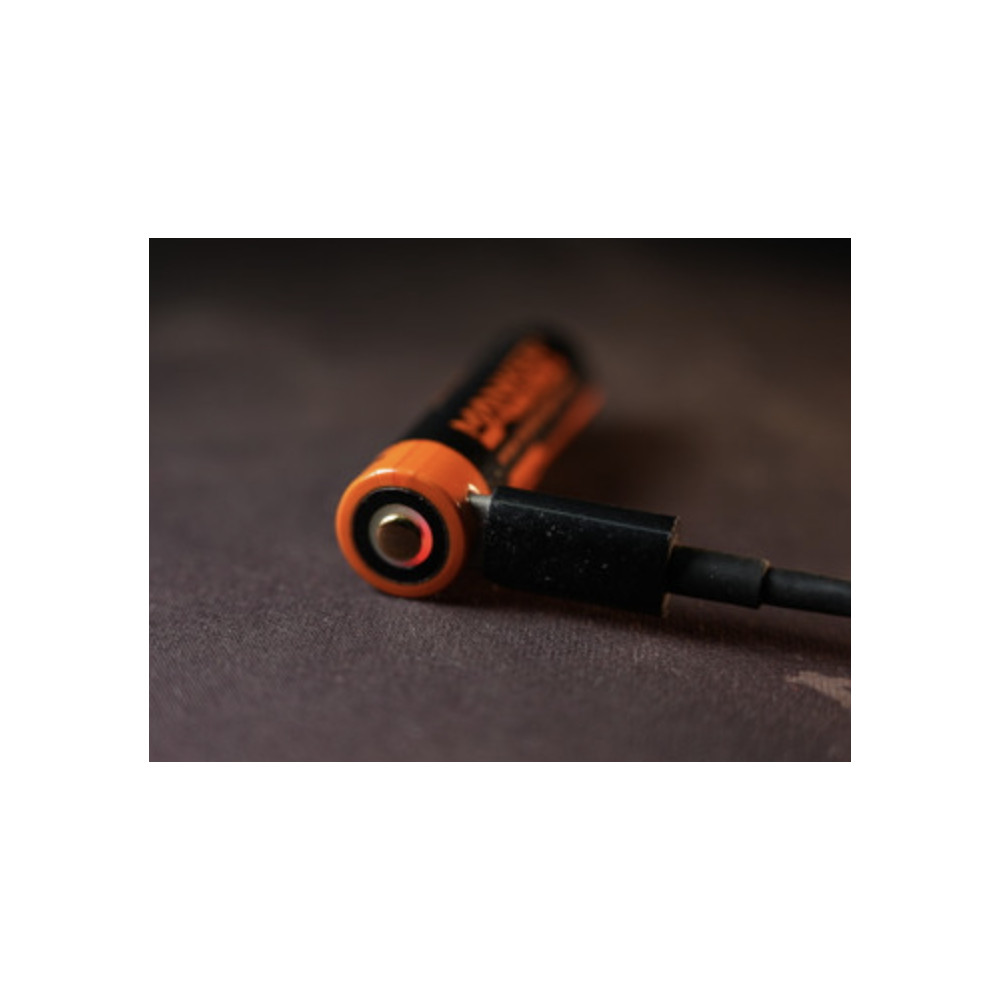

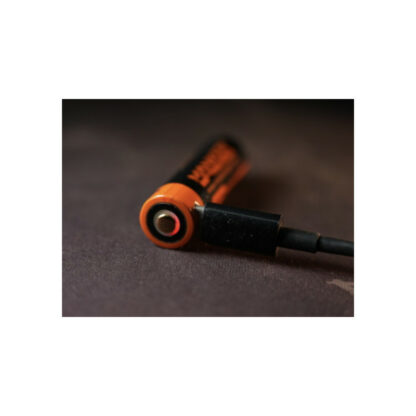

Plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. 14500 battery has built-in intelligent indentified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.

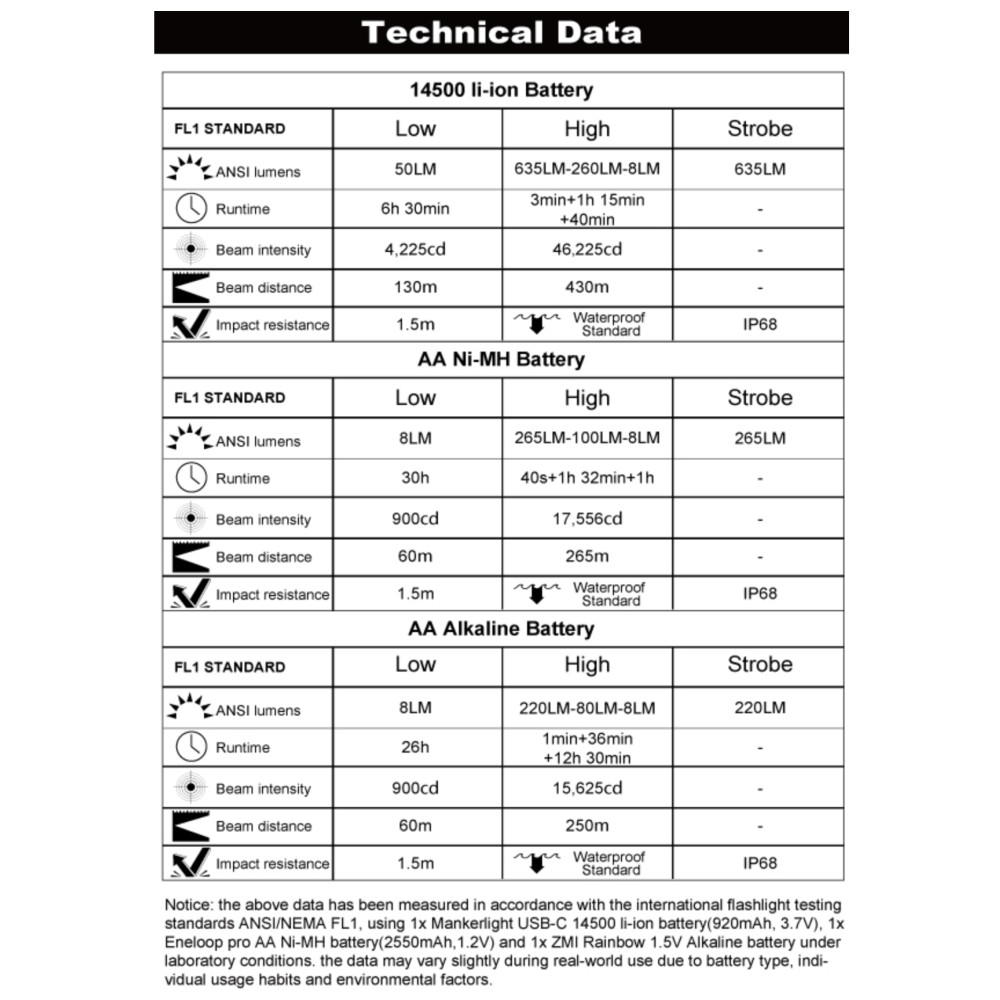

Technical Data
Powered by Mankerlight 14500 USB-C li-ion battery(included):
Low: 50 lumens, 6 hours 30 minutes
High: 635 lumens ~ 260 lumens ~ 8 lumens, 3 minutes + 1 hours 15 minutes + 40 minutes
Strobe: 635 lumens 20Hz
Beam intensity: 4,225 cd / Low; 46,225 cd / High
Beam distance: 130 m / Low; 430 m / High
Powered by AA Ni-MH Battery:
Low: 8 lumens, 30 hours
High: 265 lumens ~ 100 lumens ~ 8 lumens, 40 second + 1 hours 32 minutes + 1 hours
Strobe: 265 lumens 20Hz
Beam intensity: 900 cd / Low; 17,556 cd / High
Beam distance: 60 m / Low; 265 m / High
Powered by AA Alkaline Battery:
Low: 8 lumens, 26 hours
High: 220 lumens ~ 80 lumens ~ 8 lumens, 1 minutes + 36 minutes + 12 hours 30 minutes
Strobe: 220 lumens 20Hz
Beam intensity: 900 cd / Low; 15,625 cd / High
Beam distance: 60 m / Low; 250 m / High
Package contents
1x Mankerlight Striker Mini LED flashlight
1x Mankerlight 920mAh Type-C USB rechargeable 14500 lithium battery
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual
Warning
1. Do not shine light directly at anyones eyes
2. Please remove dust-proof film from lens before initial use
3. Please remove battery transit tab and fully charge battery before initial use
4. Please check and lubricate the threads regularly with professional lubricant
5. Please recharge the battery every 3 months when left unused for a prolonged time.
